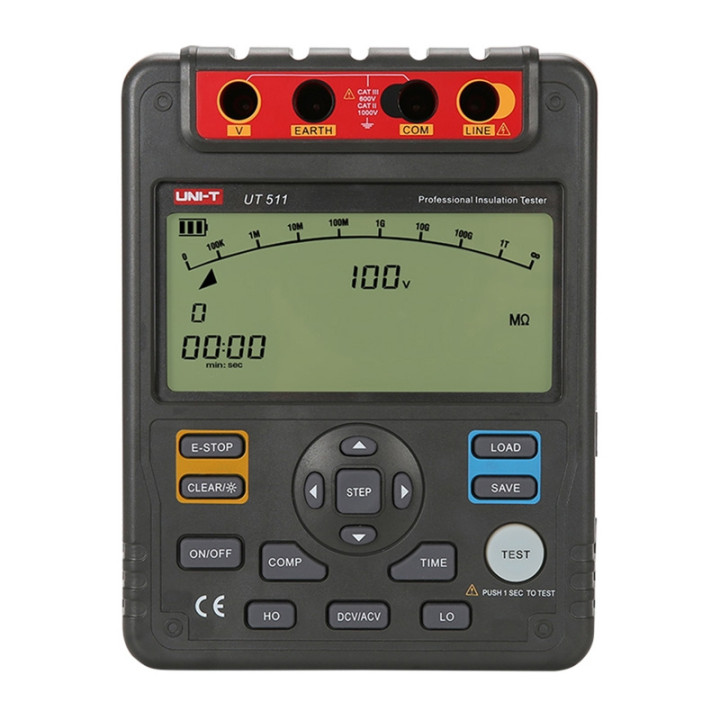

Uni-T UT511 High-Voltage Insulation Resistance Tester
Mis on pakendis
- Uni-T UT511 Tester
- Red test lead (two-pin) with alligator clip
- Test leads (single-pin) with alligator clips (2 pieces)
- Battery pack
| Manufacturer | Uni-T |
|---|---|
| Model | UT511 |
| Test voltages | 100 V / 250 V / 500 V / 1000 V |
| Insulation resistance measurement range | up to 10 GΩ |
| Accuracy | ±(3% + 5) |
| Display | 9999 + bar graph (30 segments) |
| Data memory | 18 measurements |
| Additional features | Continuous mode and timed measurement (~30 min), automatic discharge after measurement, high-voltage alarm, low-battery indicator |
| Power supply | 8 × 1.5 V (LR14) |
| Dimensions | 202 × 155 × 94 mm |
| Weight | approx. 1.2 kg |
Toote kirjeldus
Uni-T UT511 High-Voltage Insulation Resistance Tester
The Uni-T UT511 High-Voltage Insulation Resistance Tester is the entry-level model in the UT510 series, designed for insulation measurements at voltages up to 1000 V and a range up to 10 GΩ. It is ideal for diagnosing electrical installations, motors, or medium-voltage equipment where higher test voltages are not required. The device offers PI and DAR measurements, a memory for 18 results, and a clear 9999-count display with a bar graph, which facilitates quick assessment of insulation condition without the need for additional software. Automatic discharge after measurement and high-voltage indication reduce the risk of working with a charged object. Additional messages for out-of-range and low battery help prevent erroneous readings.
