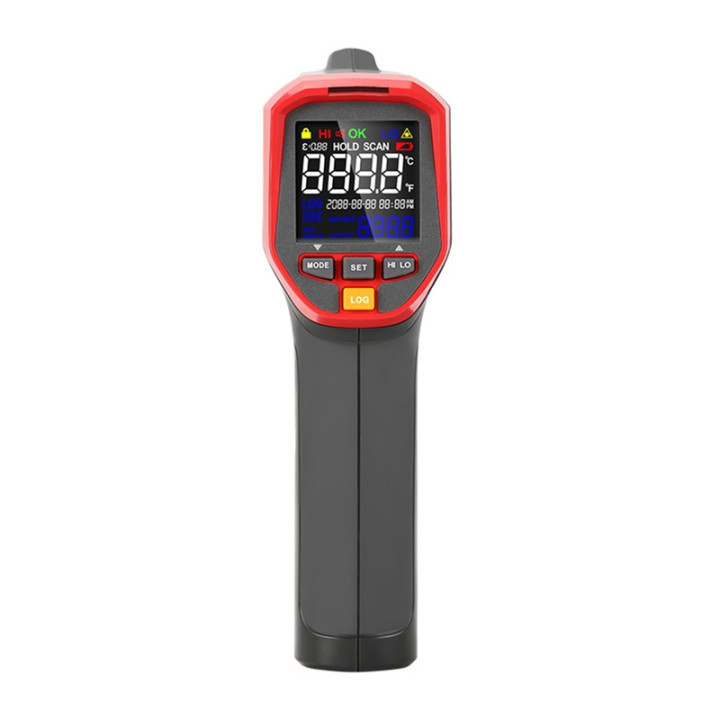

Uni-T UT303D+ Infrared Thermometer

Price: €98.29
Tax included
SKU 085023
EAN 6935750530399
Saadavus Laos olemas
Uni-T UT303D+ Infrared Thermometer The Uni-T UT303D+ infrared thermometer is a precision device for non-contact surface temperature measurement over a wide range from -32°C to 1300°C, equipped with a dual laser for easy and accurate targeting and a fast response time of 250 ms. It offers high measurement accuracy of ±1.5°C or ±1.5% for temperatu...
Available to order
  • Courier or parcel locker delivery: 6–12 business days
  • Store pickup: 4–10 business days

Mis on pakendis

  • Uni-T UT303D+ Infrared Thermometer
  • 9V battery
  • Carrying case
  • User manual
  • Blister packaging
  • Manufacturer’s packaging
Tehnilised andmed23 omadust



ManufacturerUni-T
ModelUT303D+
Temperature measurement range-32°C ~ 1300°C
Repeatability0.7°C or 0.7%
D:S ratio30:1
Response time250 ms
Emissivity adjustment0.1 – 1.0 (5 presets)
Spectral range8–14 μm
LaserDual Laser
Laser power<1 mW
Displaycolor EBTN, high contrast (35 x 35 mm)
Measurement modesMAX / MIN / AVG / DIFF / HOLD
Measurement memoryup to 99 entries (with date and time)
Alarmsvisual + audible
Operating temperature0°C ~ 50°C
Storage temperature-20°C ~ 60°C
Operating humidity<90% RH (non-condensing)
Drop test1 m
Power supply9V battery
Weight310 g
Dimensions172 x 113.5 x 53 mm
Tripod mountyes

Toote kirjeldus

The Uni-T UT303D+ infrared thermometer is a precision device for non-contact surface temperature measurement over a wide range from -32°C to 1300°C, equipped with a dual laser for easy and accurate targeting and a fast response time of 250 ms. It offers high measurement accuracy of ±1.5°C or ±1.5% for temperatures ≥0°C, while for sub-zero temperatures, the error is calculated using the formula ±(1.5°C + 0.1°C/°C). The model features adjustable emissivity (0.1–1.0), a clear color EBTN display, analysis functions (MAX/MIN/AVG/DIFF), and the ability to store up to 99 measurements with date and time, making it an advanced tool for precise non-contact measurements.

Uni-T handheld infrared thermometer taking a measurement

Functionality and Measurement Precision

The Uni-T UT303D+ is designed for convenient and accurate operation—thanks to its 30:1 D:S ratio, it enables measurements from a greater distance while maintaining high precision. The device offers visual and audible alarms, a result hold (HOLD) function, data logging, and the ability to perform scheduled measurements. Its rugged construction, resistant to drops from heights of up to 1 meter, ergonomic housing, and backlight make the device well-suited for various working conditions.

Uni-T handheld infrared thermometer taking a measurement under the hood of a car

Download the manual
https://files.innpro.pl/UNI-T/6935750530399
