Fnirsi P6100 oscilloscope probe images

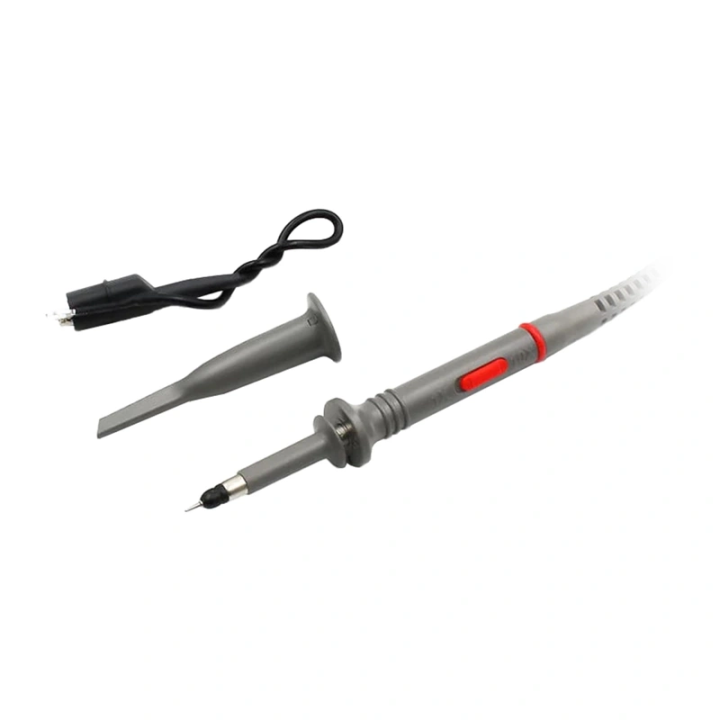

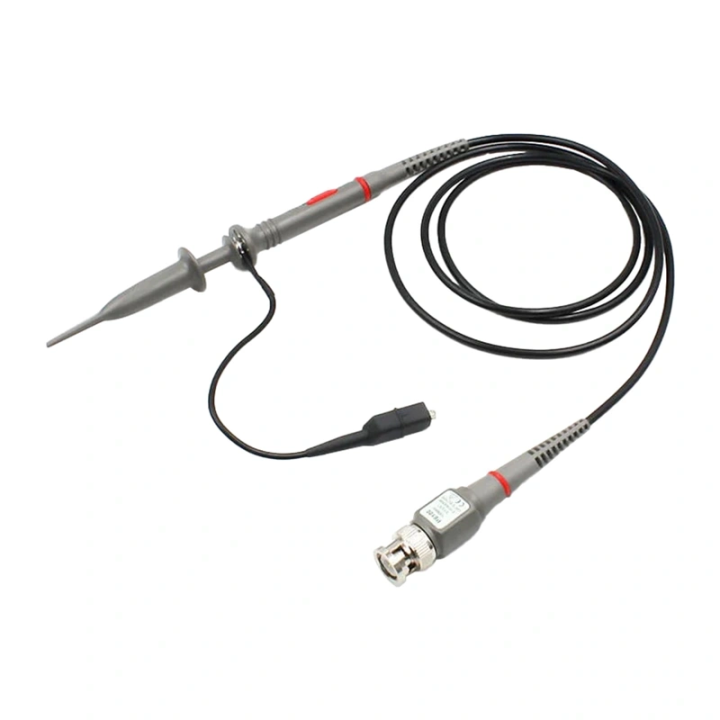

Fnirsi P6100 oscilloscope probe
Price:
€8.57
Tax included
SKU
081351
EAN
5907085529011
Saadavus
Laos olemas
The Fnirsi P6100 is an oscilloscope probe designed for precise signal measurements in everyday work with electronics. It offers a wide bandwidth, two attenuation modes, and solid electrical parameters, making it suitable for both service and hobbyist workshops. Safe operation with higher voltages In 1X mode, the probe supports voltages up to 2...
Mis on pakendis
- Fnirsi P6100 oscilloscope probe
| Manufacturer | Fnirsi |
|---|---|
| Model | P6100 |
| Frequency response | DC–6 MHz (1X mode), DC–100 MHz (10X mode) |
| Attenuation ratio | 1:10 |
| Input capacitance: | 1X: 85 pF–120 pF, 10X: 18.5 pF–22.5 pF |
| Compensation range | 10 pF–30 pF |
| Rise time | < 3.5 ns |
| Operating voltage | 1X: < 200 V DC + AC (peak), 10X: < 600 V DC + AC |
| Cable length | 120 cm |
| Operating temperature range | -10°C to +50°C |
| Storage temperature range | -20°C to +75°C |
| Humidity | ≤ 5% (relative humidity) |
| Weight | 80 g |
| Color | gray-black |
Toote kirjeldus
The Fnirsi P6100 is an oscilloscope probe designed for precise signal measurements in everyday work with electronics. It offers a wide bandwidth, two attenuation modes, and solid electrical parameters, making it suitable for both service and hobbyist workshops.
Safe operation with higher voltages
In 1X mode, the probe supports voltages up to 200 V DC + AC Peak, and in 10X mode up to 600 V DC + AC. These parameters allow for comfortable work with many popular electronic devices and power modules. The appropriate voltage range increases safety and expands the range of applications.
Convenient cable length
The 120 cm long cable provides freedom of movement at the measuring station. This allows you to conveniently connect the probe even in less accessible places without excessive cable tension. The whole thing weighs about 80 g, so the probe does not burden the connector and fits well in your hand.
Download the manual
https://files.innpro.pl/FNIRSI/5907085529011
